Multi-Port Automatic Softener Valve

INTRODUCTION:

Product Specification--Technical Parameter

Controller		Working Condition
Controller Model	Time Type	Suited Pressure	0.15 - 0.6 Mpa
Transformer Input	100 ~ 240 V / 50 ~ 60 Hz	Suited Temperature	5 ~ 45 ℃

Control Valve

Model	Connection Size					Count Mode For Running	Maximum Water Capacity m³/h	Manual Hand Wheel	Regeneration Mode
Model	Inlet/Outlet	Drain Outlet	Brine Tank Connector	Base	Riser Pipe	Count Mode For Running	Maximum Water Capacity m³/h	Manual Hand Wheel	Regeneration Mode
TM.F63B1	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Day	4.5	√	Down - Flow
TM.F63B2	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Hour	4.5	√	Down - Flow
TM.F65B1	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Day	2	/	Down - Flow
TM.F65B2	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Hour	2	/	Down - Flow
TM.F68A1	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Day	4.5	√	UP - Flow
TM.F68A2	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Hour	4.5	√	UP - Flow
TM.F69A1	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Day	2	/	UP - Flow
TM.F69A2	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	Hour	2	/	UP - Flow
TM.F74A1	2" M	1" M	1/2" M	4" - 8 UN	1.5" D - GB (50mm)	Day	10	/	Down - Flow
TM.F74A2	2" M	1" M	1/2" M	4" - 8 UN	1.5" D - GB (50mm)	Hour	10	/	Down - Flow

Product Specification--Technical Parameter

Controller		Working Condition
Controller Model	Time Type	Suited Pressure	0.15 - 0.6 Mpa
Transformer Input	100 ~ 240 V / 50 ~ 60 Hz	Suited Temperature	5 ~ 45 ℃

Control Valve

Model	Connection Size					Maximum Water Capacity m³/h	Manual Hand Wheel	Regeneration Mode
Model	Inlet/Outlet	Drain Outlet	Brine Tank Connector	Base	Riser Pipe	Maximum Water Capacity m³/h	Manual Hand Wheel	Regeneration Mode

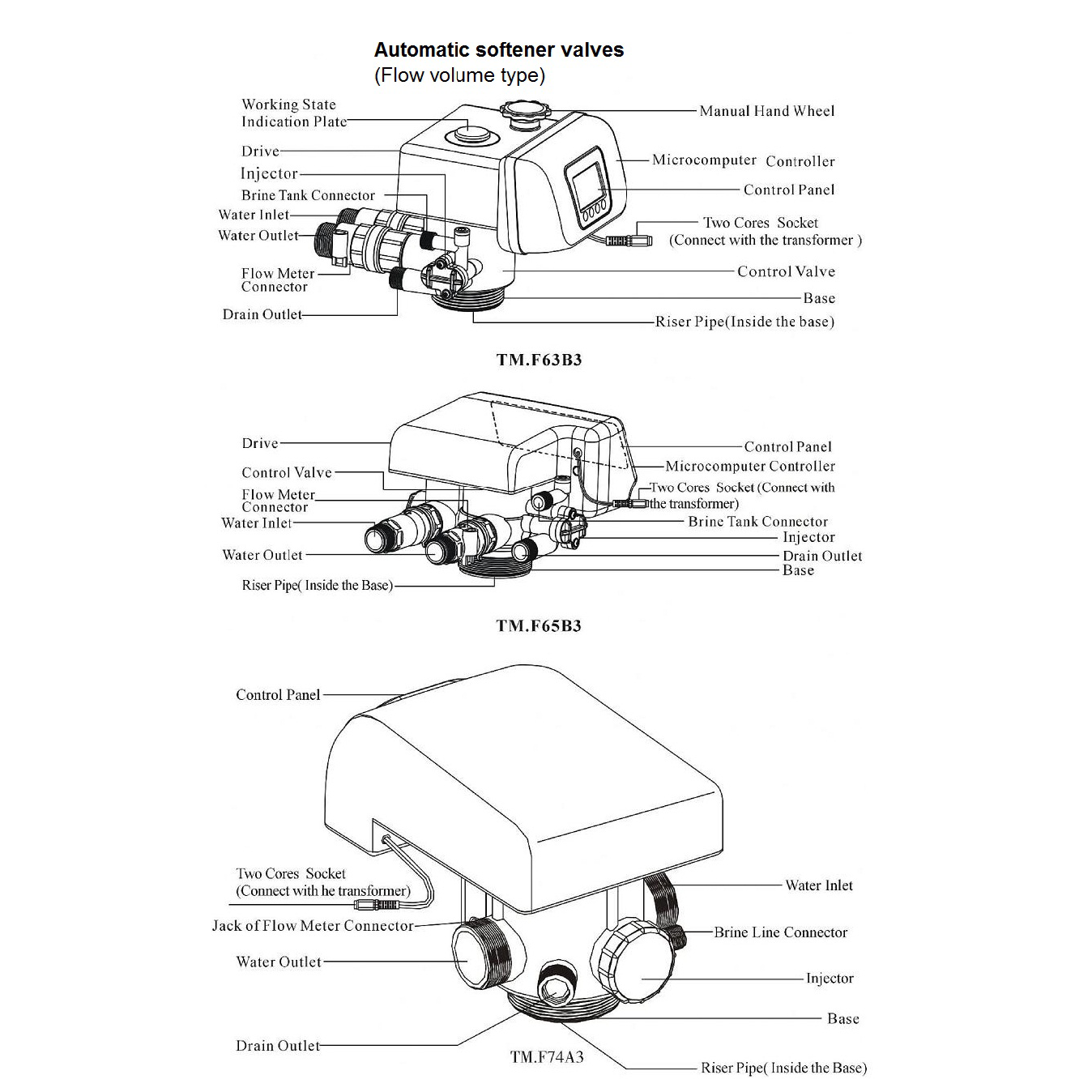

TM.F63B3	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	4.5	√	Down - Flow
TM.F65B3	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	2	/	Down - Flow
TM.F68A3	1" M	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	4.5	√	UP - Flow
TM.F69A3	3/4" F	1/2" M	3/8" M	2 - 1/2" - 8 NPSM	1.05" OD (26.7mm)	2	/	UP - Flow
TM.F74A3	2" M	1" M	1/2" M	4" - 8 UN	1.5" D - GB (50mm)	10	/	Down - Flow
